FlexPatio Custom Motorized Pergola Kit

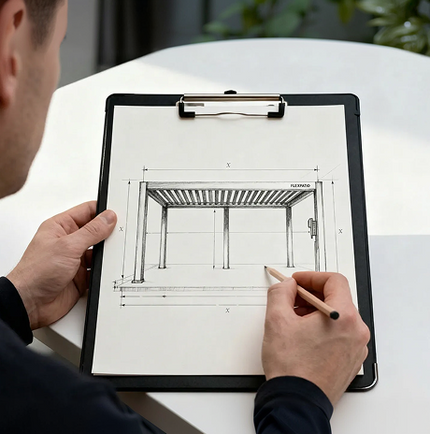

Custom Pergola Design Service

🛠️ $19 Customization Fee

Get a personalized pergola layout, initial sketch, and quotation tailored to your outdoor space.

⏱️ Quick Response

Receive your customized design proposal and quote within two business days.

Pergola Style:
Custom Pergola Size:
Side Wall Options:
accessory options:
Where would you like the pergola to be installed?
preview
$19.00
$19.00
Save
Speak with our specialists
We're Online We're Offline
Online Time
Mon-Fri: 10:00 a.m. - 5:00 p.m. AEST (Online at 9 a.m. on Wed.)
Sat-Sun: 10:00 a.m. - 5:00 p.m. AEST (Online at 9 a.m. on Sun.)
Schedule a video consultation
VIDEO CONSULTATION
support@flexpatio.au
+61 02 5700 8057
Message on WhatsApp
Contact us online
Your Personal Design Journey
From design to delivery, we’re with you every step of the way.
Submit Your Request
Step 01 01 / 08
Submit Your Request
Choose your preferred pergola size, layout and add-ons, then submit your request online.
Customizable to Fit Your Space
Designed around your space, style, and the way you want to live outdoors.
Custom Dimensions

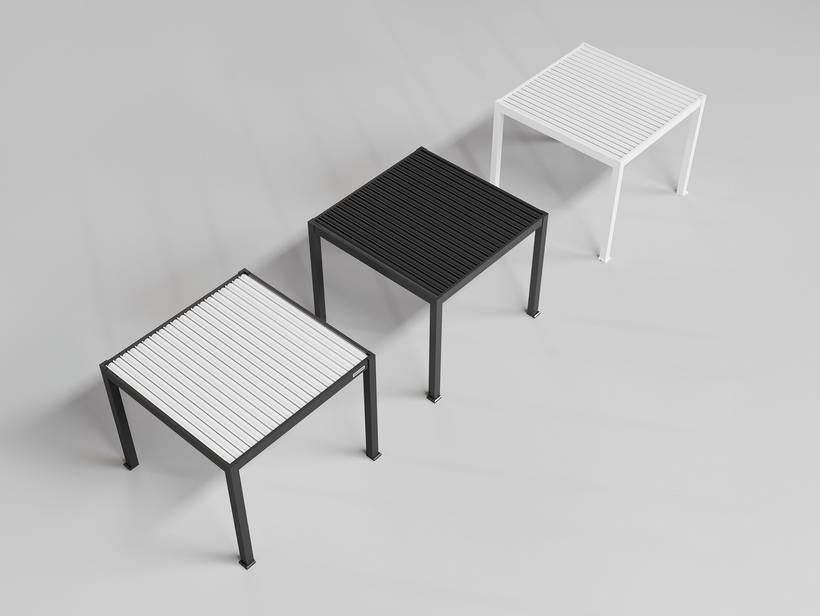

Custom Colors

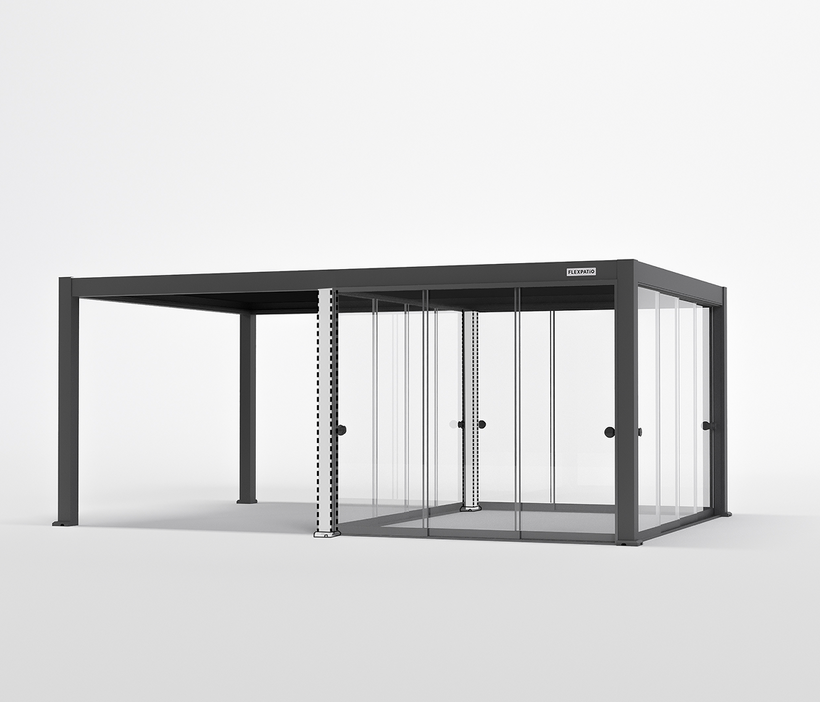

Post Configuration

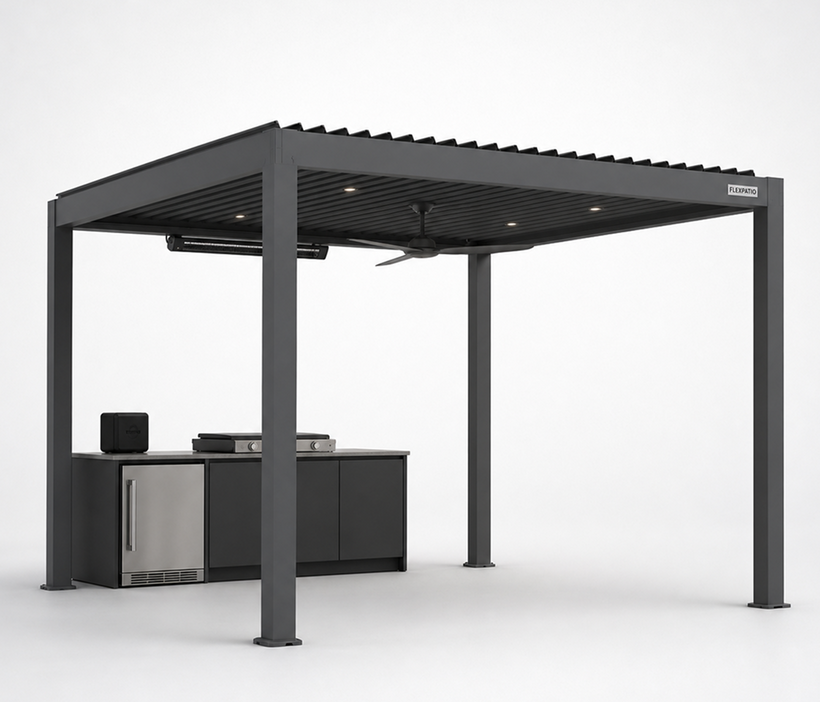

Power Routing

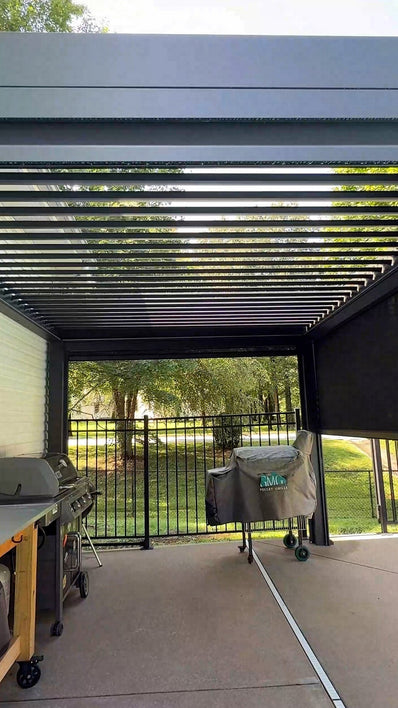

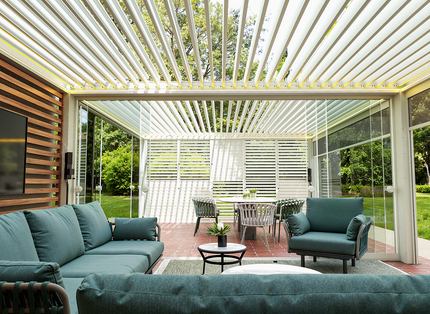

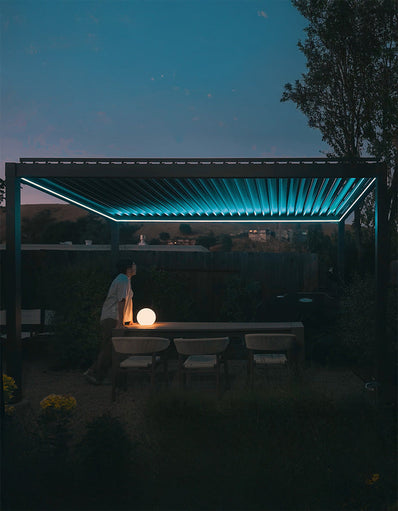

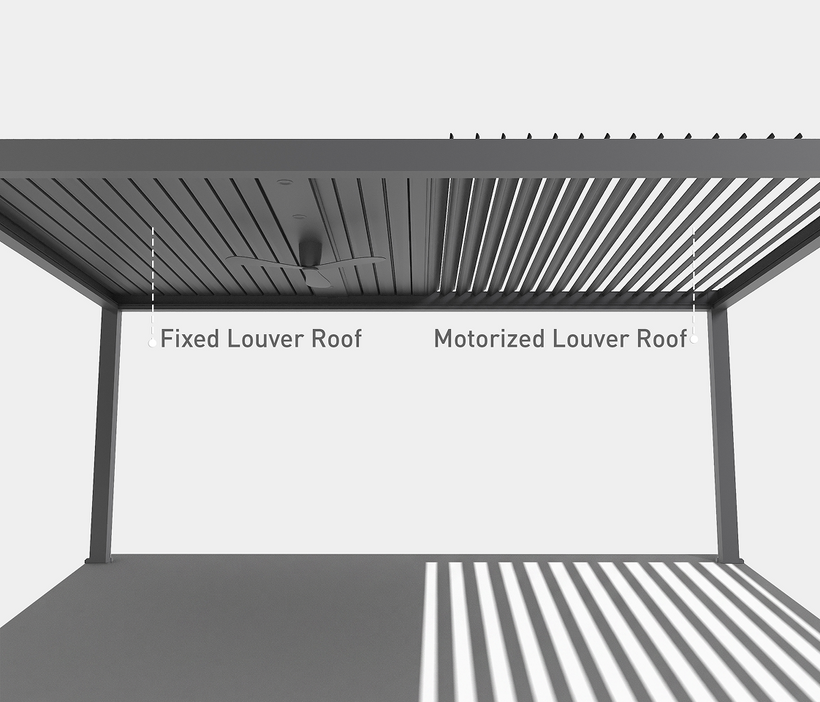

Louvred Roof

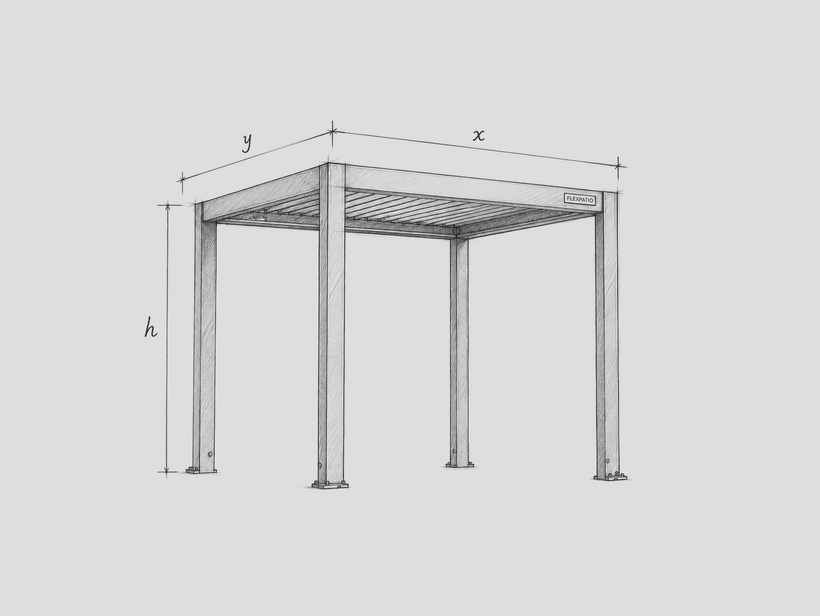

Custom Dimensions
Customise the length, width, and height to fit your outdoor space. The shorter side can be up to 6m, and the overall height can be customised up to 3m.
Designed to Perform
Enjoy smarter, easier outdoor living all year round.
Integrated Power System

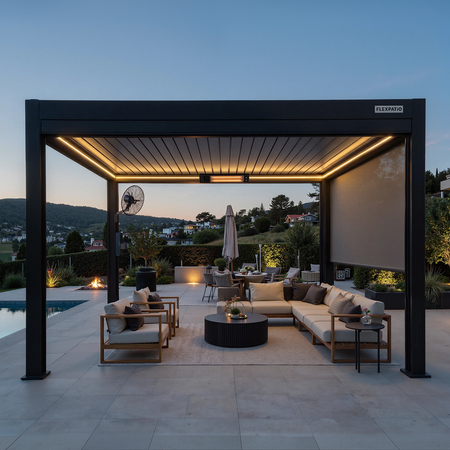

Integrated Power System
Built-in power includes concealed wiring, outlets, IP68-rated connections, and pre-wired ports for future accessories.

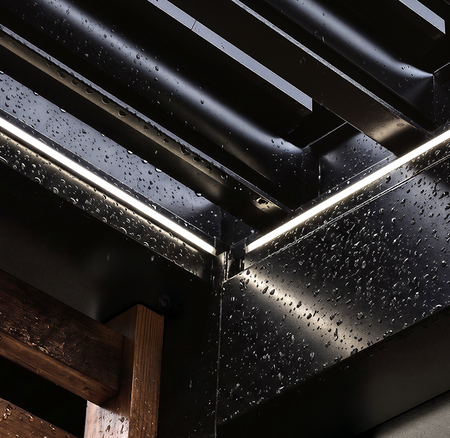

Premium 6063-T5 Aluminum
Premium 6063-T5 Aluminum
High-strength 6063-T5 aluminum provides lasting durability and corrosion resistance in demanding outdoor conditions.

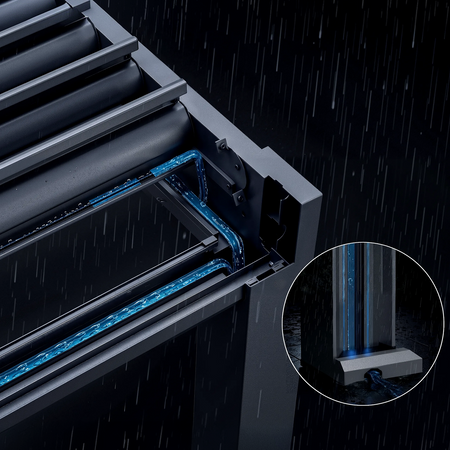

Drainage System
Drainage System
Engineered louvres, hidden gutters, and drainage channels direct water away to help keep the space below dry.

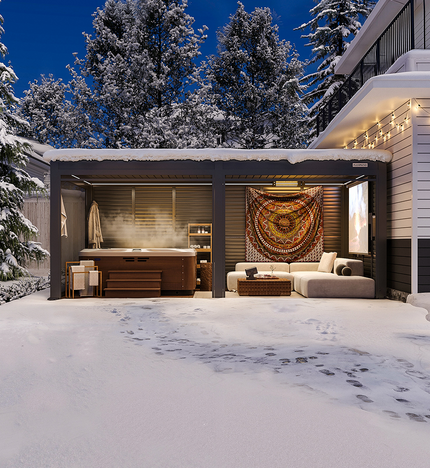

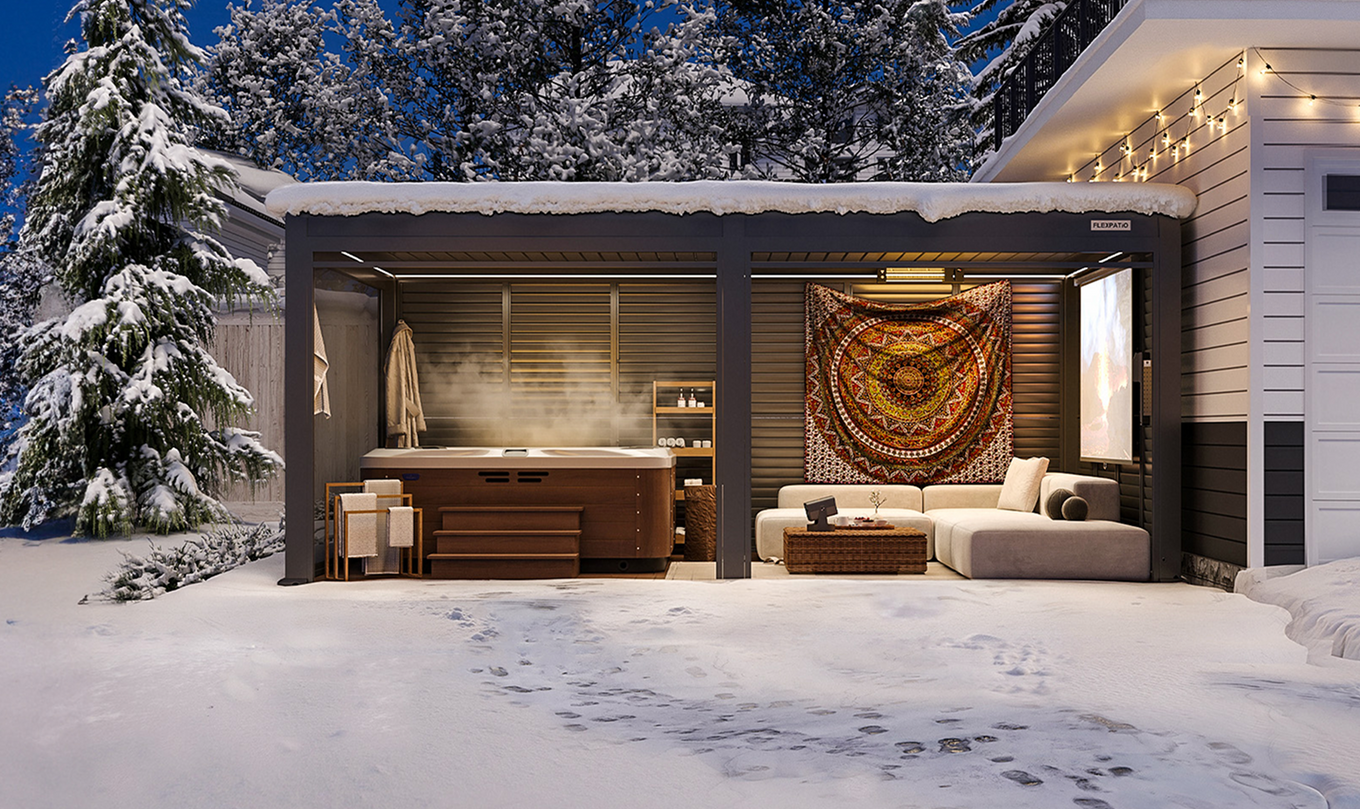

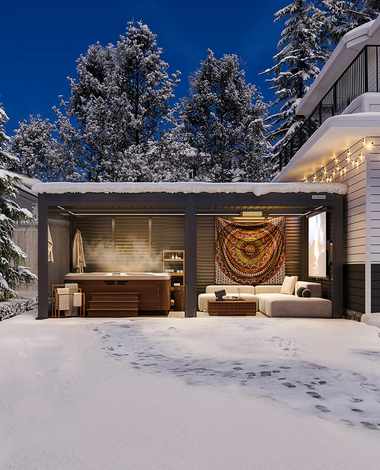

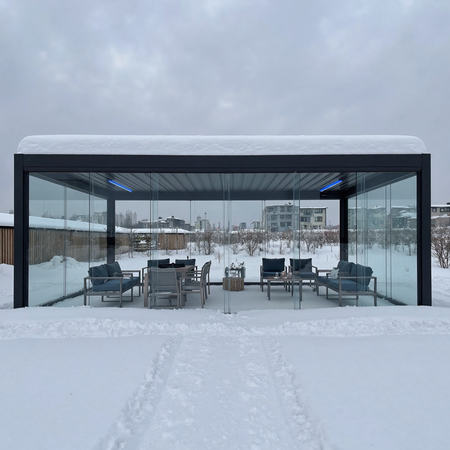

Built for All Seasons
Built for All Seasons
Designed for year-round sun, rain and wind. Select models withstand winds of up to 265 km/h, delivering reliable performance in changing Australian conditions.

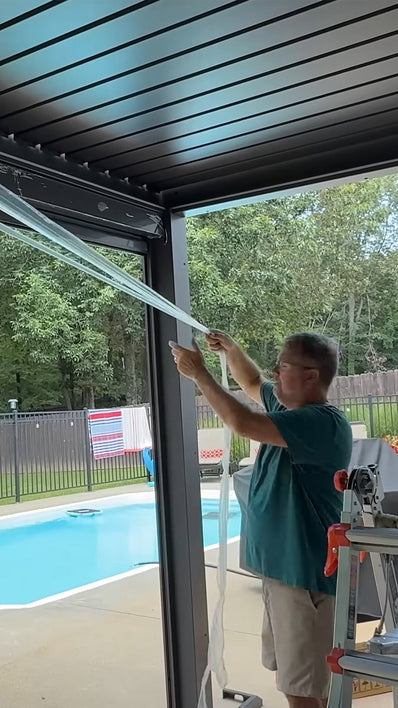

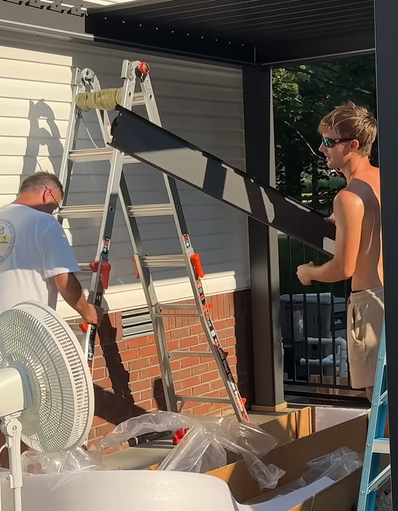

Easy Installation

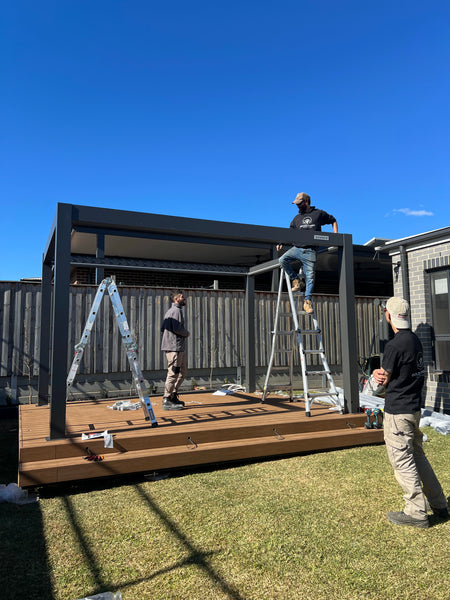

Easy Installation

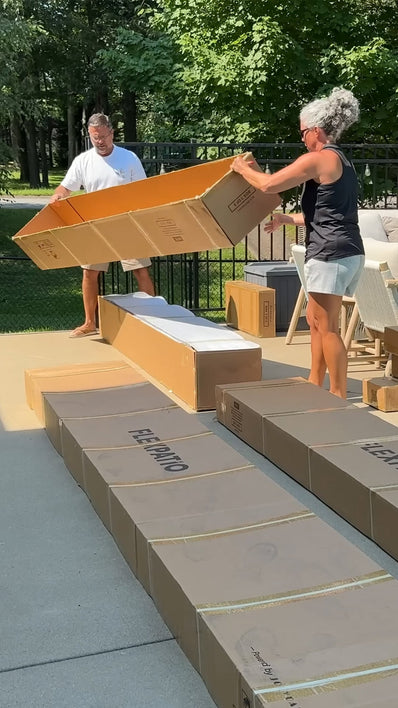

The pre-engineered modular design allows most pergolas to be installed by four people in about 2–4 hours.
More Than a Pergola
Great outdoor spaces deserve great support.
10-Year Warranty
The pergola frame is backed by a 10-year structural warranty for long-term peace of mind.
Installation Options
Choose DIY assembly or professional installation by a local contractor.
Permit Support
We provide product documents and technical information to support council or building approval applications.
Upfront Pricing
All agreed project costs are clearly included in your quote.
Free Delivery

Free delivery to most areas across Australia. Surcharges may apply to selected regional or remote locations.
Delivery Timeline
Delivered in about 100 days, from design through production.
FAQ

Answer:
Custom pergolas must comply with structural requirements. The shorter side is recommended not to exceed 6 m, while there is no limitation on the longer side. Any pergola larger than 5 × 6 m cannot be manufactured as a single unit and must be divided into multiple connected modules. For example, a 6 × 8 m pergola would be produced as two connected 6 × 4 sections.

Answer:
Yes. Smaller-than-standard pergolas can be customised. However, for sizes smaller than 3 m × 3 m, the price does not decrease proportionally as the size becomes smaller.

Answer:
No. At this time, we only manufacture rectangular pergolas. Custom designs with non-90° angles, triangular, pentagonal, or other irregular roof shapes are not supported.

Answer:
Yes. L-shaped and courtyard-style (grid) layouts are available through connected pergolas. However, due to the connection design, the overlapping areas may have drainage limitations.

Answer:
Yes. Different heights can be customised. The standard height is approximately 2.54 m , and the maximum custom height is 3 m.

Answer:
Yes. A custom fan support beam can be added for ceiling fan installation. An additional structural charge applies. For safety, the distance from the bottom of the fan to the ground should be at least 2300 mm.

Answer:

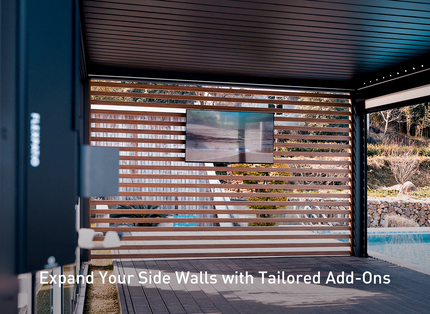

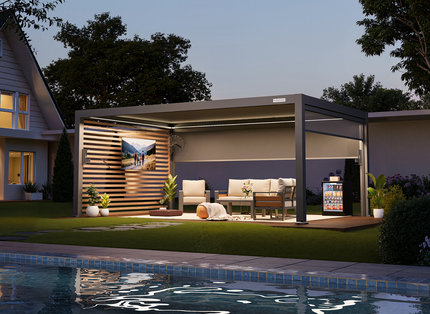

Yes. We recommend installing the TV using a dedicated TV mount attached to the Slat Wall system.

Answer:

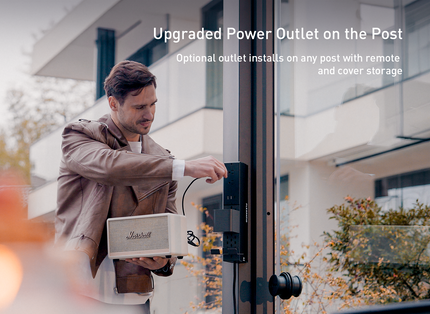

Yes. Power outlets can be installed on different pergola posts based on your preference, and their locations can be customised.

Answer:
Yes. The main power cable can be routed through the integrated gutter system, providing a clean and concealed appearance.

Answer:

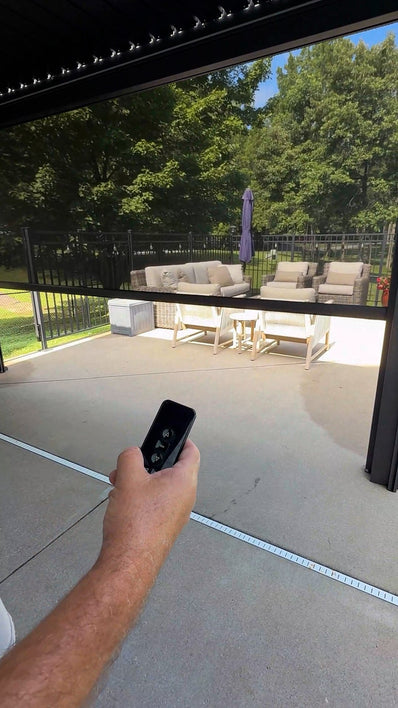

Yes. The pergola comes with remote control functionality and can also be equipped with an RF Controller for smart control capabilities.

Answer:
Pergolas up to 5 m × 6 m can typically be designed without center posts. Larger sizes require additional support posts to maintain structural integrity.

Answer:
Please inform your sales representative in advance. Height differences can sometimes be accommodated by customising post lengths. However, this may affect the installation of side accessories such as walls or screens. If side accessories are included, we recommend leveling the installation surface before installation.

Answer:

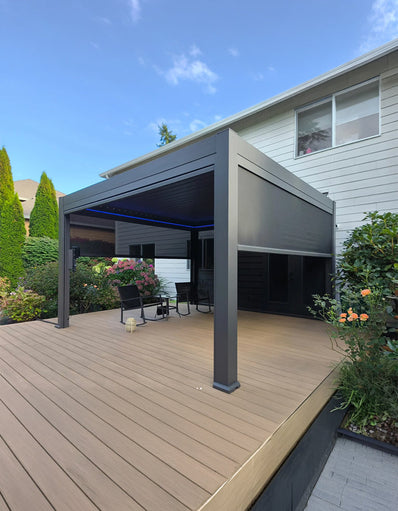

Yes, provided the deck has sufficient load-bearing capacity. Since Trex decking alone may not provide adequate structural support, reinforcement may be required. Please confirm the deck's structural capacity with your sales representative before placing an order.

Answer:
No. The posts are typically anchored to a concrete foundation using expansion anchors, providing excellent stability and wind resistance.

Answer:
Custom replacement posts can be purchased if only the post height needs to be adjusted. However, the main frame dimensions and post layout cannot typically be changed after installation. We strongly recommend confirming the final design before shipment.

Answer:
Yes. The louver opening direction can be customised according to your project requirements before production.

Answer:

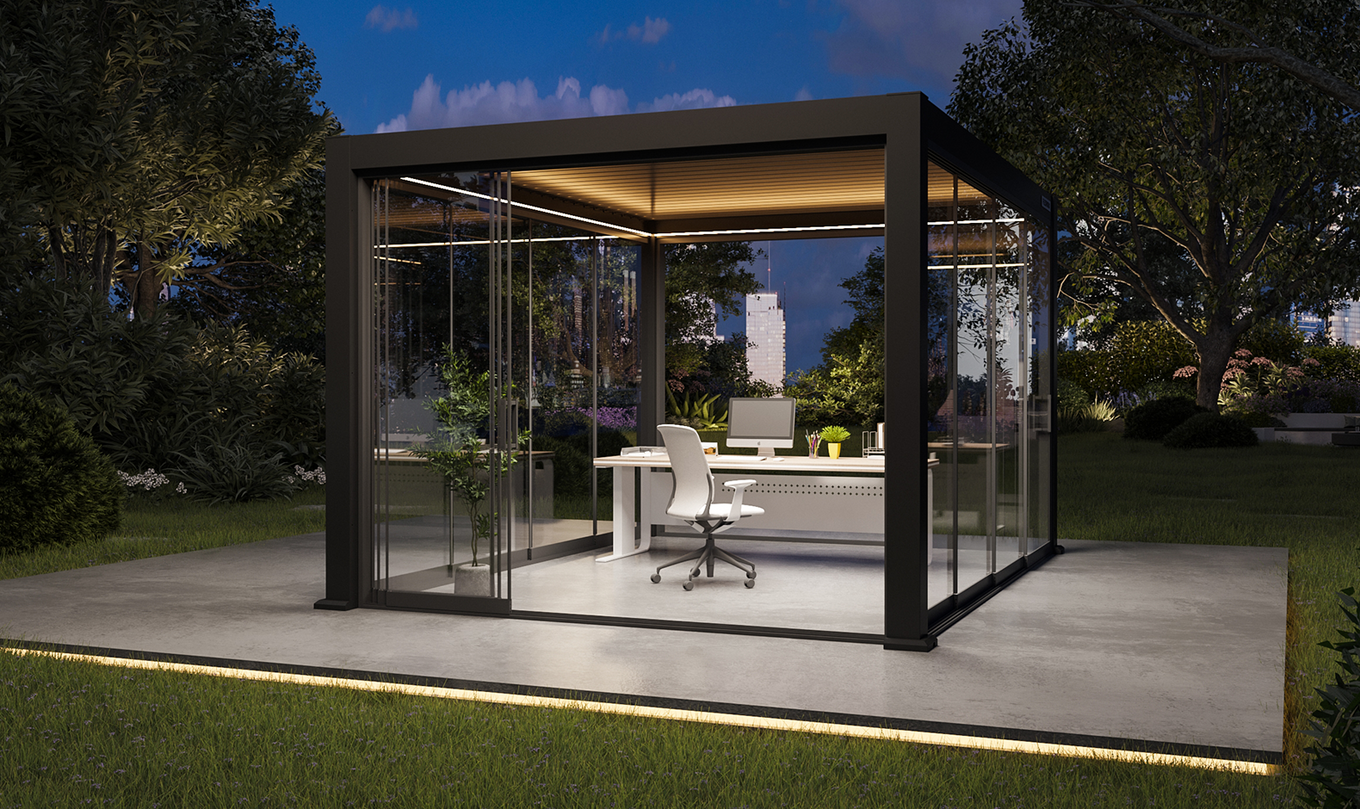

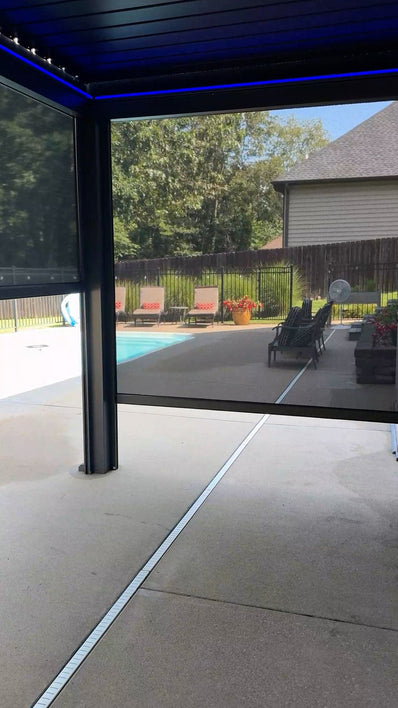

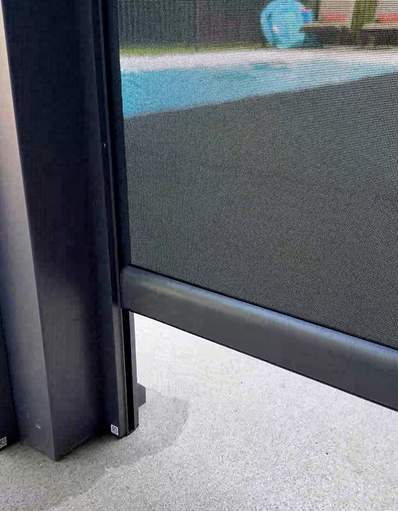

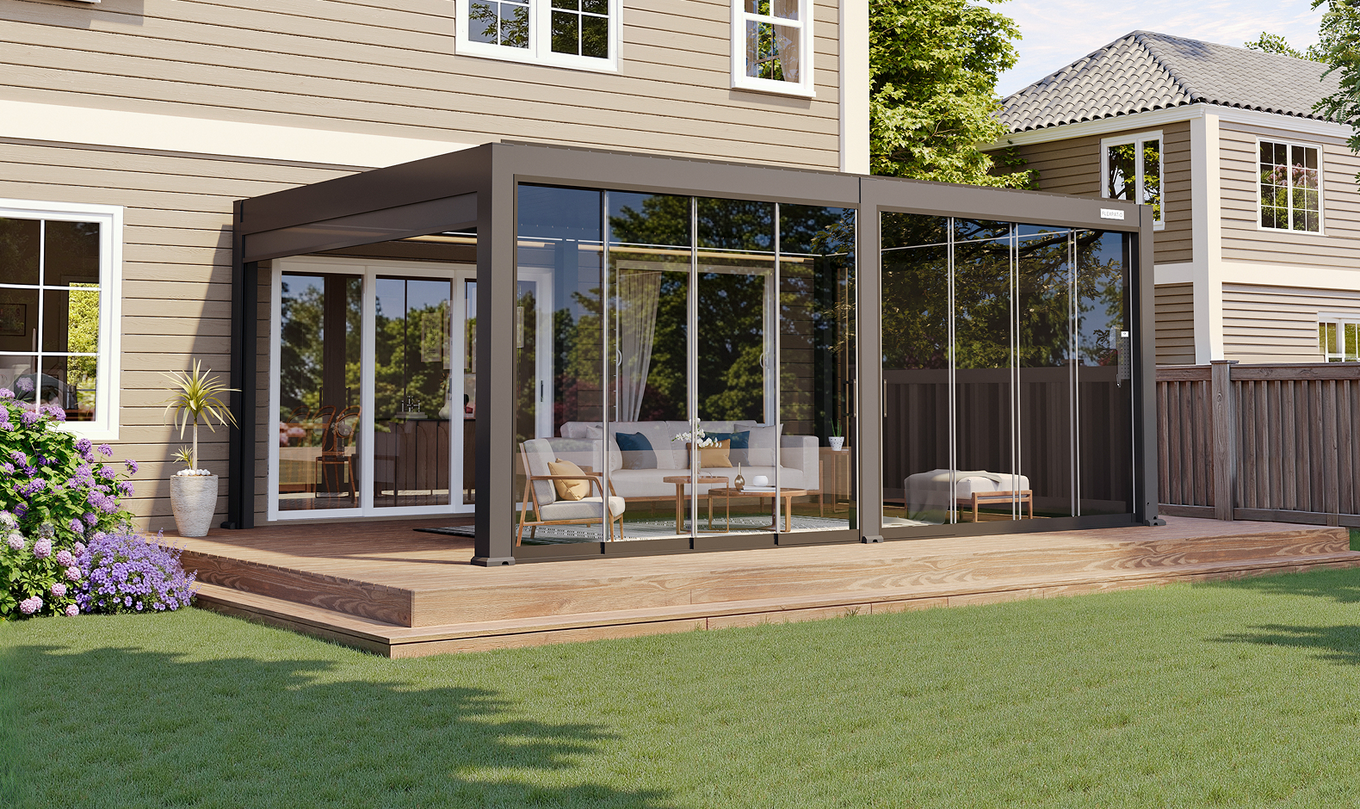

Yes. Glass doors and motorised screens can be installed together on the same side, depending on the final design and dimensions.

Answer:
Yes. Both the Slat Wall and Privacy Shutter Wall can be customised to smaller dimensions. Please provide accurate measurements when placing your order.

Answer:
A single side can be customised with 3 to 6 glass door panels, depending on the opening width and project requirements.

Answer:

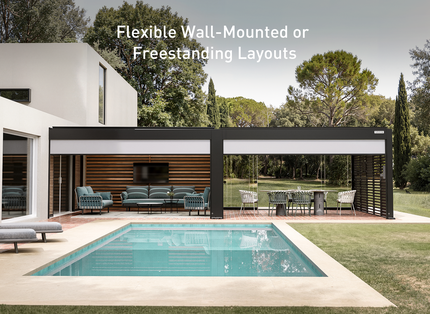

No. When a wall-mounted pergola does not have rear support posts, expansion anchors are required for structural safety. If you prefer not to drill into the wall, we recommend choosing a freestanding pergola with the rear posts positioned close to the wall instead.

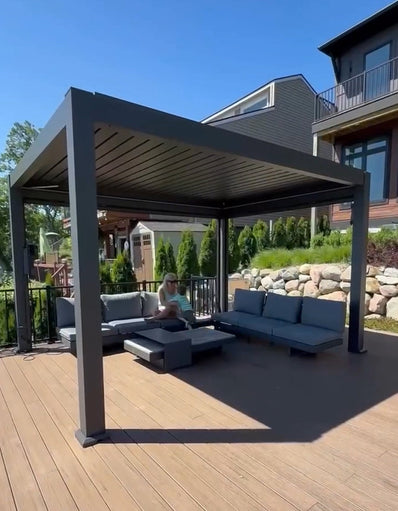

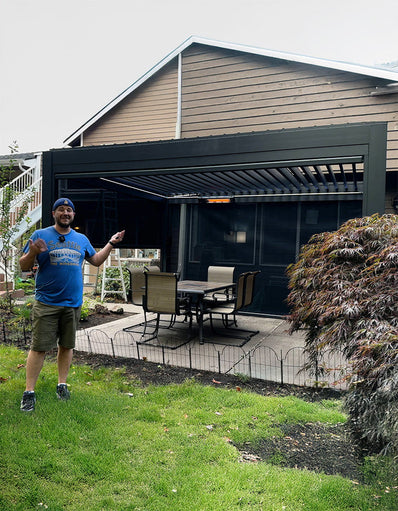

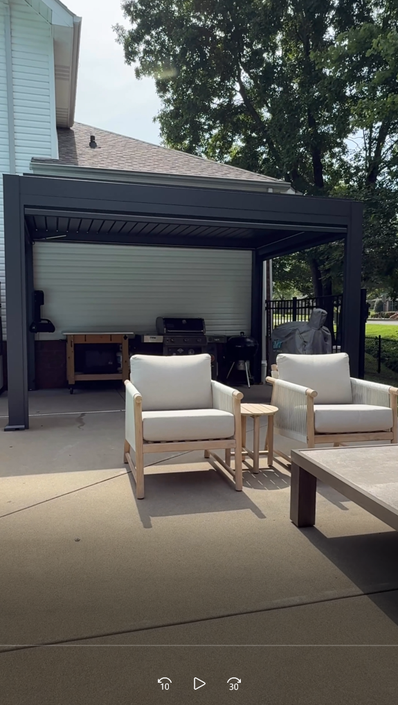

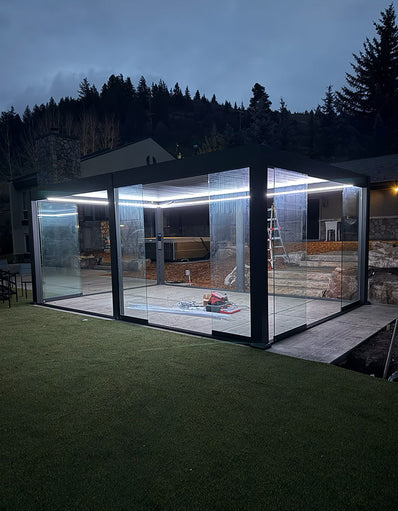

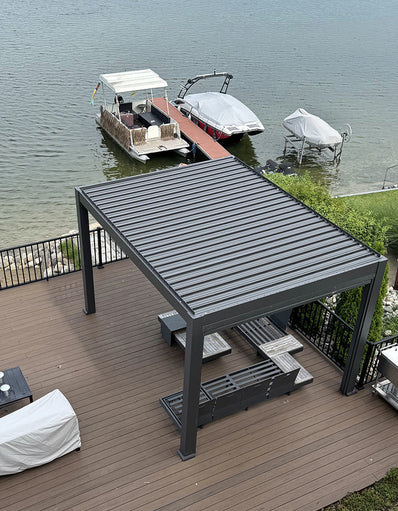

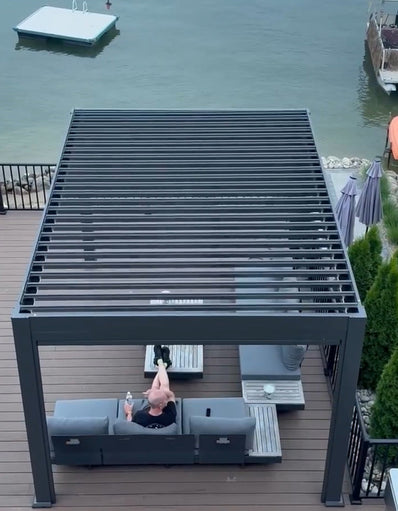

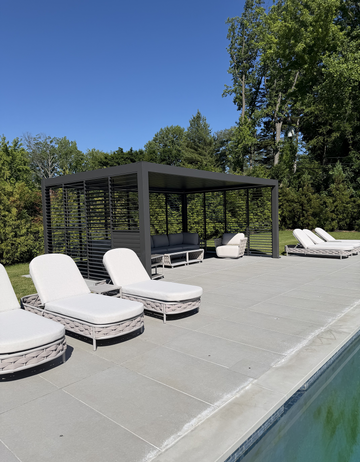

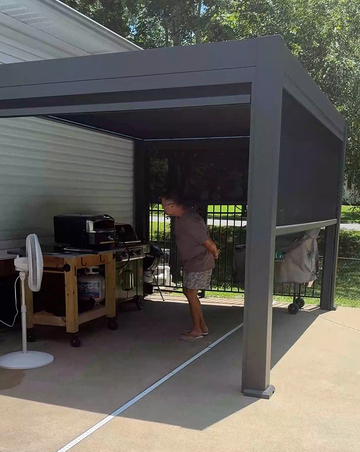

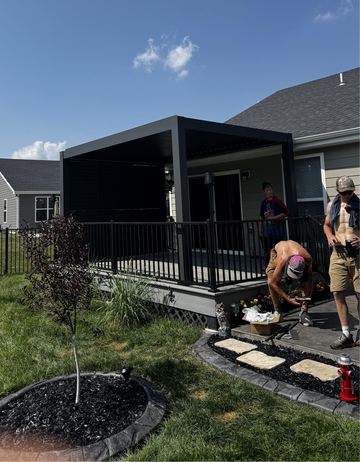

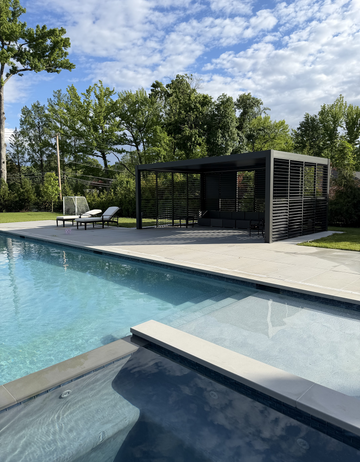

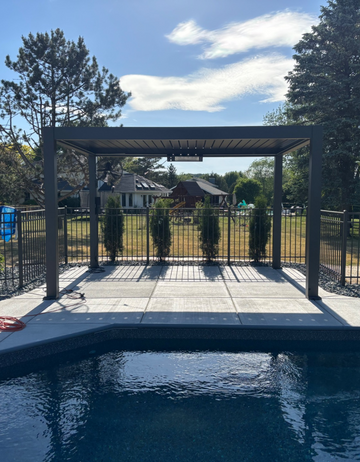

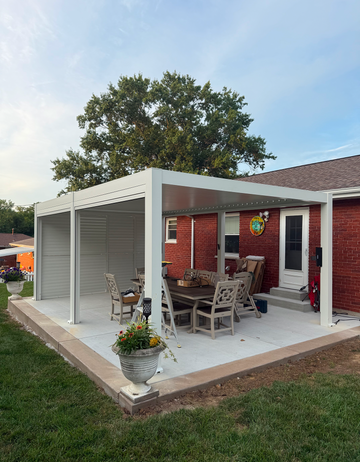

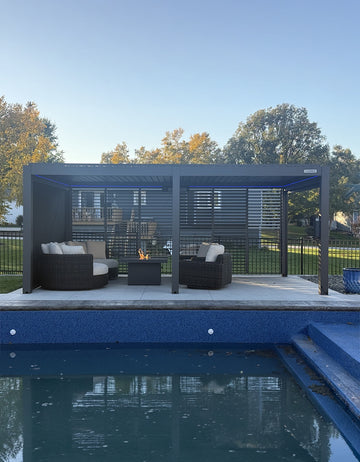

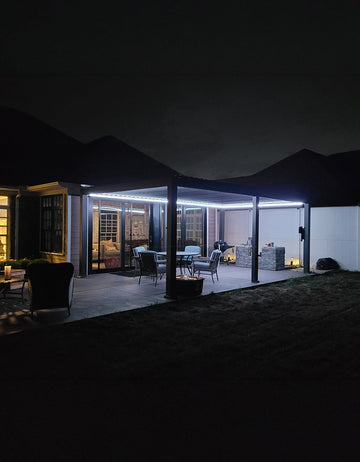

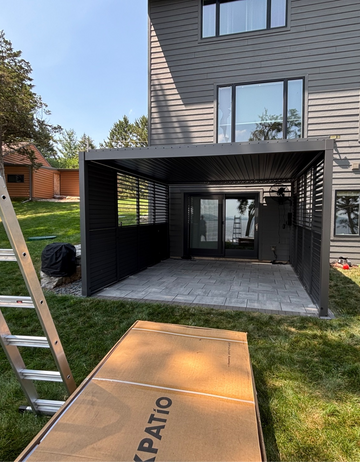

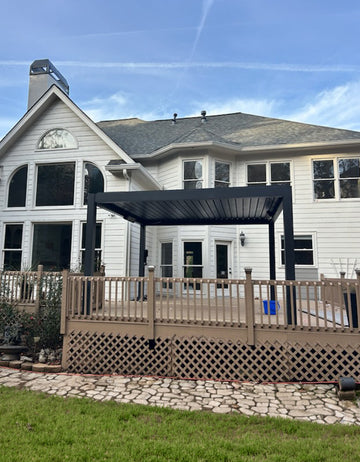

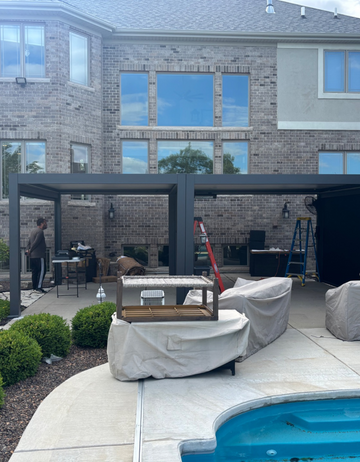

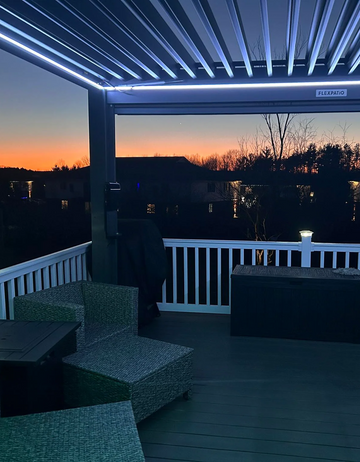

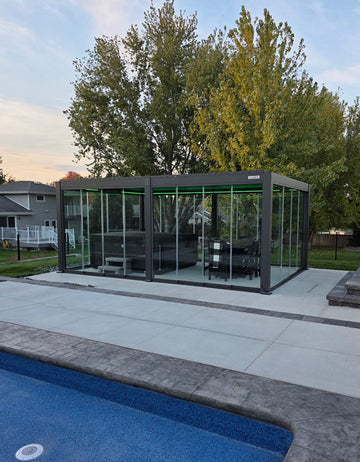

FlexPatio in Real Life
